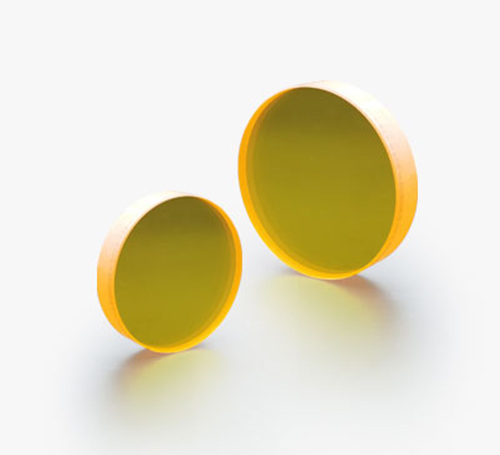

ZnSe (Zinc Selenide)

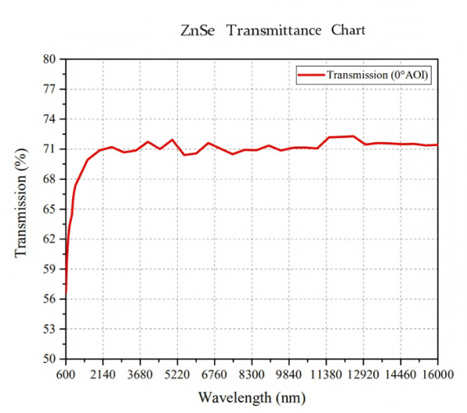

CVD ZnSe is the material of choice for optical components in high-power CO2 lasers, owing to its wide transmission band (extending from the visible to the far-infrared, ~0.5–15μm ) and exceptionally low absorption at the CO2laser wavelength of 10.6μm.
Jingbai provides customized ZnSe lenses and windows services.
Other ZnSe optical components offered by Jingbai Optics include:
Spherical and aspherical lenses, Cylindrical lenses,Plano or wedge, Windows, Prisms
Details

Applications

IR optical systems and laser applications



Customization Parameters

Material

ZnSe

Dimension Tolerance

+0.0, -0.2mm

Thickness Tolerance

±0.1mm

Surface Flatness

λ/40 @ 632.8nm

Surface Quality

60-40 S-D

Clear Aperture

>90%

Focal Length Tolerance (%)

Customizable per request


Note: All dimensions & coatings customizable upon request.
