Filters

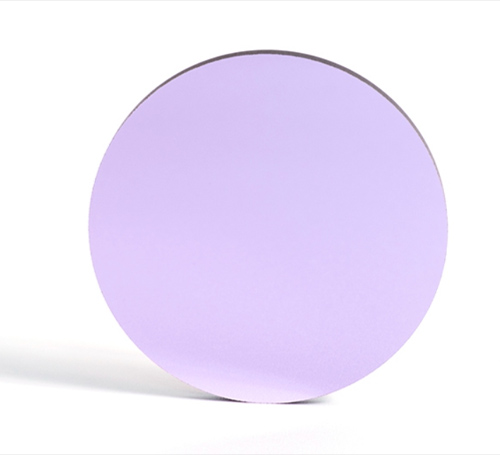

An optical filter selectively transmits specific light wavelengths, typically as a planar glass device with bulk dyeing or interference coatings. Its optical properties are defined by frequency response, specifying how incoming light signal frequency components' magnitude and phase are modified.
We offer: Band Pass Filter, Short Pass Filter, Long Pass Filter, UV & IR Cut Filter, Narrow Bandpass Filter, Color Filter, Neutral Density Filter.
We offer: Band Pass Filter, Short Pass Filter, Long Pass Filter, UV & IR Cut Filter, Narrow Bandpass Filter, Color Filter, Neutral Density Filter.
Details
Applications
Biochemical Instruments, Biometric Recognition, Infrared Imaging, Laser Modules, Fluorescence Analyzers, Security Monitoring Systems, Machine Vision, Optical Measurement Instruments, Medical Testing Instruments.
Customization Parameters

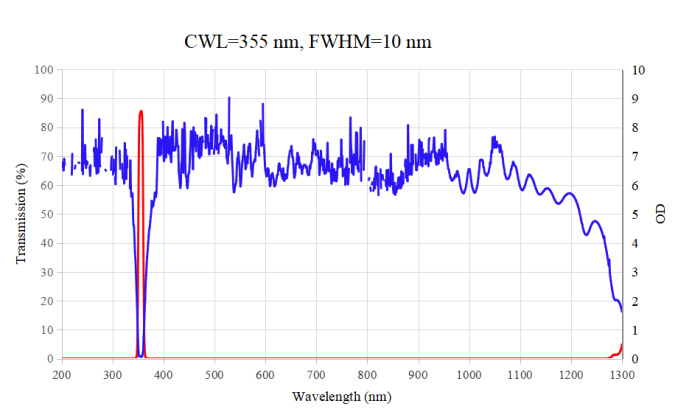

Center Wavelength | 200nm - 1650nm |
FWHM | 4nm - 20nm |
Peak Transmittance | ≥45% |
Optical Density | OD3; OD4; OD5; OD6 |
Dimension Tolerance | 0.5-600 ± 0.02mm |
Clear Aperture | ≥90% |
Thickness Tolerance | 0.3-50 ± 0.02mm |
Surface Flatness | λ/10 ~ λ/2 |
Surface Quality | 60/40, 40/20 or better |
Bevel | 45° × 0.2mm |
Note: All dimensions & coatings customizable upon request.
