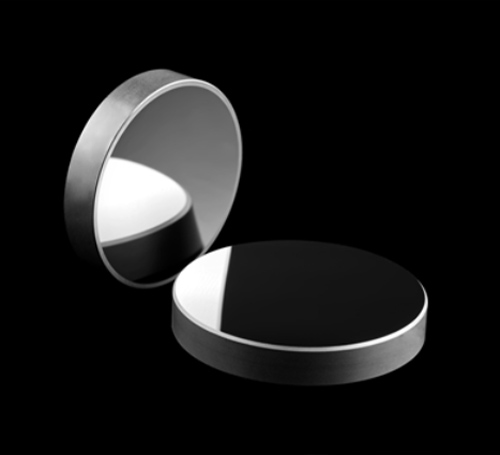

Mirrors
Jingbai provides dielectric coated and metal coated mirrors, fabricated on substrates including K9, BK7, fused silica, Si, CaF₂ (Calcium Fluoride) and sapphire.
Details
Applications
Beam steering, Laser resonators, Telescopes, Imaging systems
Customization Parameters
Substrate Material | K9, BK7, UVFS, Si, CaF2, MgF2, Sapphire or others |
Diameter Tolerance | +0,-0.2mm |
Thickness Tolerance | ±0.2mm |
Clear aperture | 90% |
Surface quality | 60-40 S-D |
Metal Coating | Al (for visible light), Ag (for infrared), Au (for high corrosion resistance); enhanced with AR/HR/PR coatings for specific wavelength requirements |
Note: All dimensions & coatings customizable upon request.
