Windows

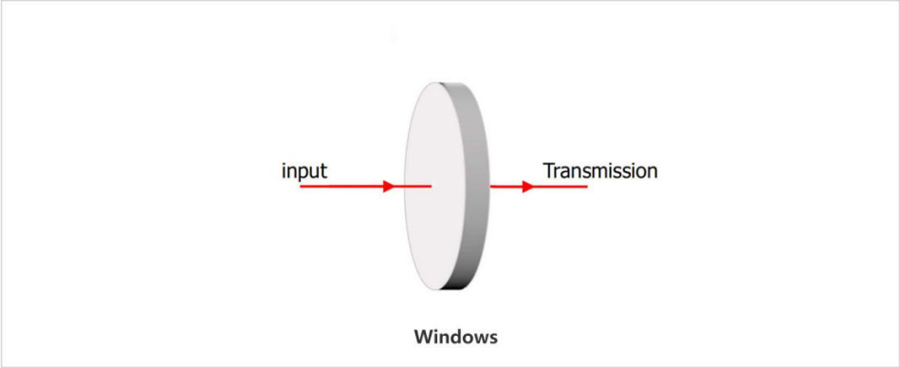

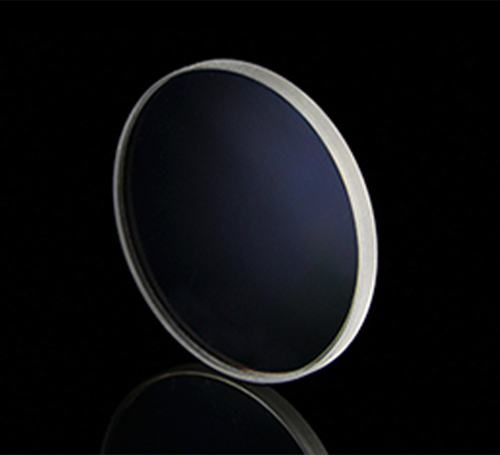

Optical Windows are flat, plane-parallel sheets, often used as protective barriers to shield electronic sensors or detectors from external environmental impacts. When selecting Optical Windows, they should be screened according to the material transmission properties or mechanical properties of the substrate. Optical Windows will not change the magnification of a system.
Details
Applications
Protective covers for detectors, lasers, cameras; Optical path windows (aerospace, medical, industrial)
Customization Parameters
Specification | Common precision | High precision |
Material | K9, BK7, UVFS, ZnSe, ZnS, Ge, Si,CaF2, MgF2, Sapphire or others | |
Dimension tolerance | +0.0/-0.2 mm | +0.0/-0.1 mm |
Tc tolerance | ± 0.3 mm | ± 0.1 mm |
Clear aperture | 85% | 90% |
Surface quality | 60-40 S-D | 20-10 S-D |
Surface flatness | 1/2λ@632.8nm | 1/8 λ @632.8nm |
Deviation | ±3 arc min | ±1 arc min |
Note: Custom sizes and wavelength are available upon request.
