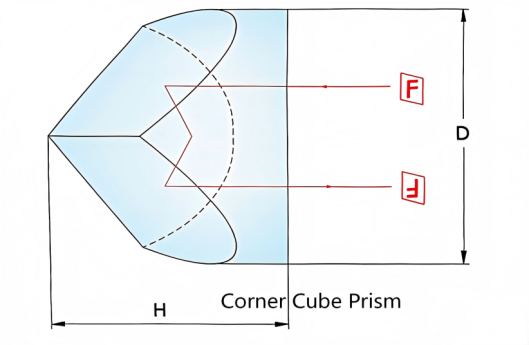

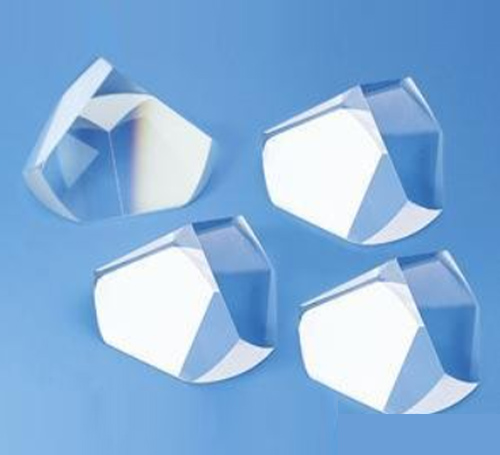

Corner Cube Retroreflector

As a high-precision optical retroreflector, the corner cube prism consists of three mutually perpendicular optical reflective surfaces integrated into a single glass prism. Based on total internal reflection, it reflects any incident light parallelly back in the opposite direction within its effective range, with the retroreflection effect independent of the incident angle and no need for precise alignment.
Details

Applications

Laser rangefinders, Surveying equipment, Optical communication, Barcode scanners.



Customization Parameters

Specification

Optical grade

Laser grade

Material

K9, BK7, FS, UVFS or others

Dimension tolerance

+0.0/-0.2mm

+0.0/-0.1mm

Tc tolerance

± 0.3mm

± 0.1mm

Clear aperture

>80%

Surface quality

60-40  S-D

40-20  S-D

Surface flatness

1λ@632.8nm

1/4λ@632.8nm

Deviation

±3 arc min

±1 arc min

Note: All dimensions & coatings customizable upon request.
