Penta Prisms

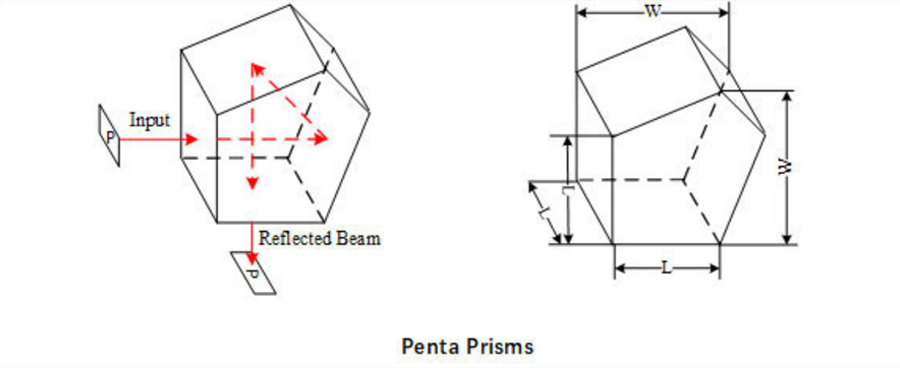

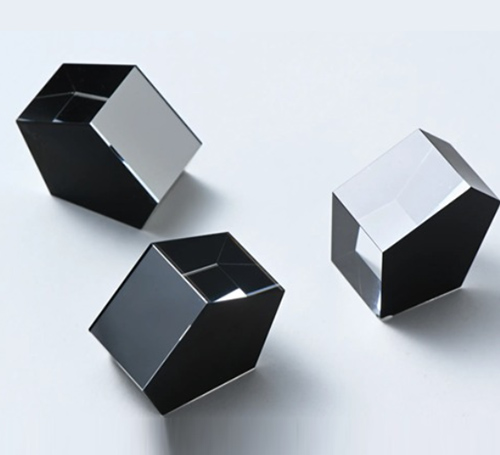

A penta prism features five surfaces (three polished, two reflective). The reflective surfaces are coated with metallic/dielectric HR coatings, and non-working surfaces are blackened. It deflects incident light by 90° non-reversibly, with the 90° deflection angle unaffected by minor positional adjustments for easy installation.
Details
Applications
SLR camera viewfinders, Laser rangefinders, Optical measuring equipment.
Customization Parameters
Specification | Optical grade | Laser grade |
Material | K9, BK7, FS, UVFS or others | |
Dimension tolerance | +0.0/-0.2mm | +0.0/-0.1mm |
Tc tolerance | ± 0.3mm | ± 0.1mm |
Clear aperture | >80% | |
Surface quality | 60-40 S-D | 40-20 S-D |
Surface flatness | 1λ@632.8nm | 1/4λ@632.8nm |
Deviation | ±3 arc min | ±1 arc min |
Note: All dimensions & coatings customizable upon request.
